Design1.dsn --Orcad Capture for Windows V6.10 Design file
Aaa.olb --Same as above, just a library file

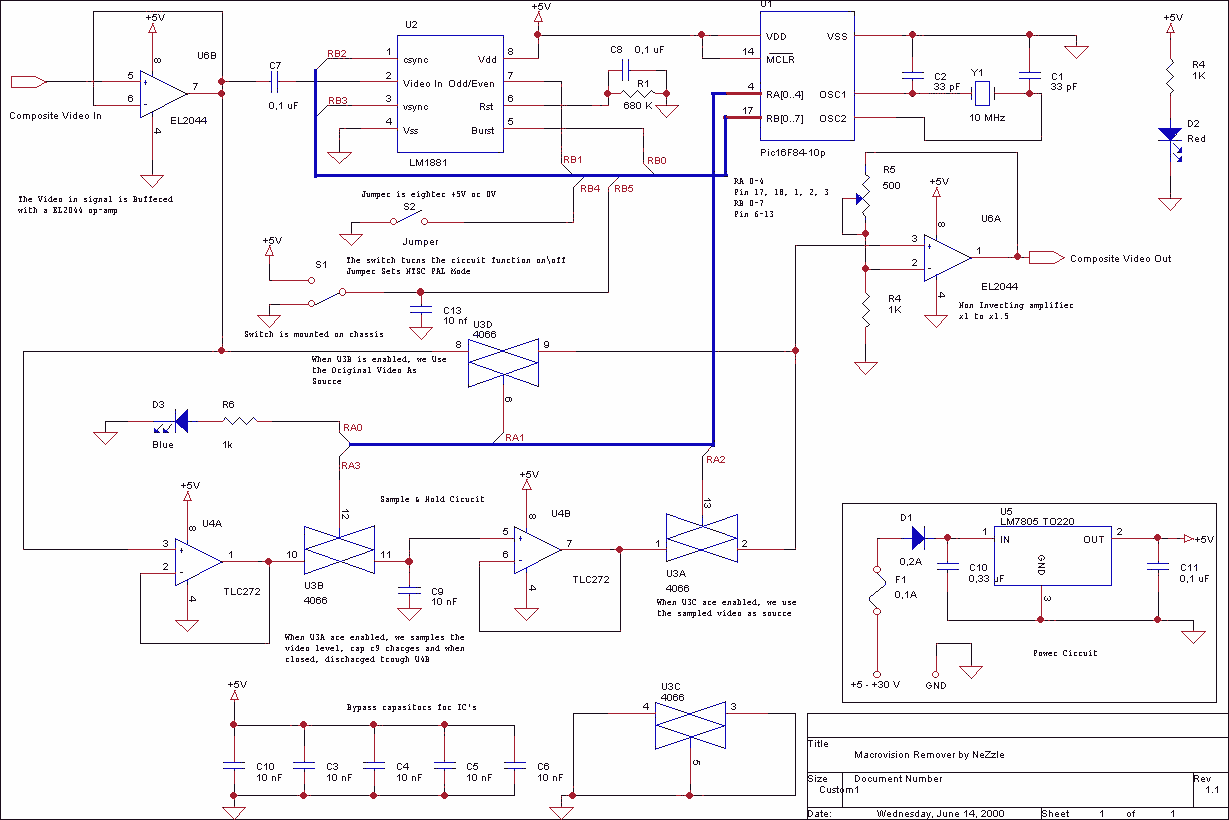

SchemaB.jpg --The picture file for Everybody
LM1881.pdf --Data Sheet for the LM1881 chip
macro.asm --The asmebly file for Microchip MPLAB V5.0 Good commented...
Macro.hex --The hex file you put onto the controller
PCB.pdf --The printedbord circuit
Print.pcb --You got the Protel'99???
File_iD.diz --This file.
©Eivind Næss / NeZzIe 2000
Leagal Advice
This information is provided as it is and may be redistributed as long as it’s not altered in any ways.
It should not be not be used commercially but only for educational purposes. Please see your own countries laws
before processing further. In Norway you may take one backup of your media (DVD, CD, VHS).
|
